Introducing the Thread calculator app, your ultimate tool for generating CNC thread cycles. This app offers a comprehensive table of all threaded thread measurements, allowing you to easily generate NC code with various cycles such as G76, G32, G33, G92, and CYCLE97. Whether you need to create threads with one or two lines, or for Mach3 controllers, this app has got you covered. It even enables you to generate NC code for cylindrical, conical, and multiple threads. With the ability to customize thread dimensions and pitch, ThreadGen ensures that you can effortlessly calculate thread cycles according to your own specifications. Say goodbye to tedious manual calculations and hello to simplified CNC thread generation with ThreadGen.
Features of Thread calculator:
- CNC thread cycle generation: The app provides a tool for generating CNC thread cycles, making it easier for users to create accurate and efficient threads.

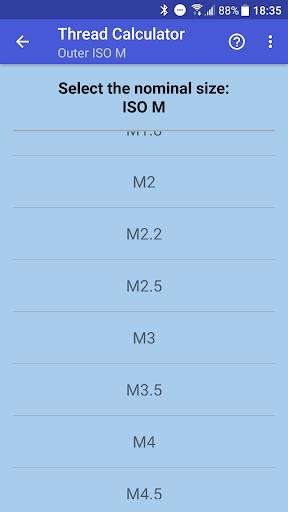

- Complete table of threaded thread measuring: Users have access to a comprehensive table that includes all the necessary information for measuring threaded threads, ensuring accuracy in their machining process.

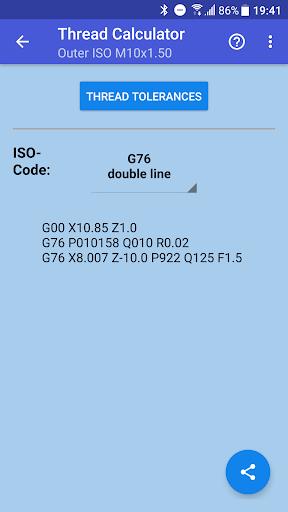

- NC code generation: The app generates NC code using popular cycles such as CYCLE, making it compatible with Mach3 controllers.

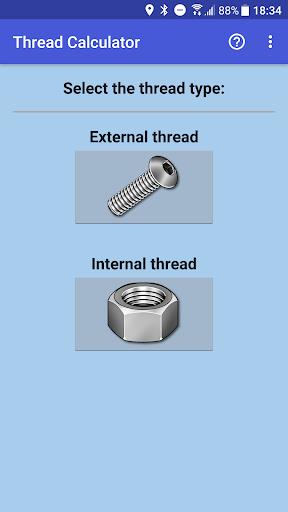

- Support for different thread types: Users can generate NC code for cylindrical, conical, and multiple threads, catering to a wide range of machining needs.
- Inclusive thread data: The app provides detailed information including thread nominal dimension, tolerances for outer diameter, flank diameter, core diameter, and drill diameter, ensuring precise and reliable tapping.
- Extensive range of thread standards: Users can access a variety of thread standards, such as ISO-Metric, ISO-Metrisch Fine thread, Gas pipe, Withworth, UNF, BSF, UNC, UNS, NPT, UNJF, BSPT R, BSPT Rp, NPSF, NPSC, NPSM, and even create their own custom threads.
Conclusion:
Thread calculator is a powerful and versatile tool for CNC thread machining. With its ability to generate NC code, provide comprehensive thread data, and support various thread standards, it offers convenience and accuracy to users. Whether they need to create simple or complex threads, this app caters to their needs while ensuring precision. Click here to download the app and simplify your CNC thread machining process.
