Application Description
Management software for the DOmini digital oscilloscope.
This digital oscilloscope is ideal for students, amateur radio enthusiasts (Arduino), experimental researchers, and electronic engineers.
Key Features
- 6 measuring channels (4 analog + 2 digital);
- 4 measurement modes (Single, Normal, Auto, and Record);
- Trigger events capture data leading up to the occurrence of the event;
- Real-time Fourier analysis;
- Waveform memory capacity of 13,200 measurements (up to 400 with the logic analyzer enabled);
- Analog channel sampling rate: 5,000 to 1,000,000 samples per second;
- Digital channel sampling rate: 5,000 to 12,000,000 samples per second;
- Available output voltages: +3.3V and +5V;
- Probe calibration and unit establishment;
- Compatible with standard oscilloscope probes (x1, x10);
- Measured voltage range: ±5V or 0–10V (±15V or 0–30V) with an x1 probe;
- 10-bit ADC resolution;
- 4 digital inputs/outputs supporting PWM;
- Digital interfaces: SPI, I2C, UART, 1-WIRE.
Applications
- Interim analysis of analog and digital signals;
- Frequency signal analysis using Fast Fourier Transform (FFT);
- Control of external devices via 4 I/O ports;
- PWM signal generation from 3Hz to 10MHz;
- Testing ICs with digital interfaces (SPI, I2C, UART, 1-WIRE);
- Use as a voltage source providing +3.3V and +5V (up to 30mA);
- Data acquisition system functionality (connecting various sensors such as temperature, humidity, and irradiance sensors);
- Detection of high-impedance state input/output ports (Z-state).

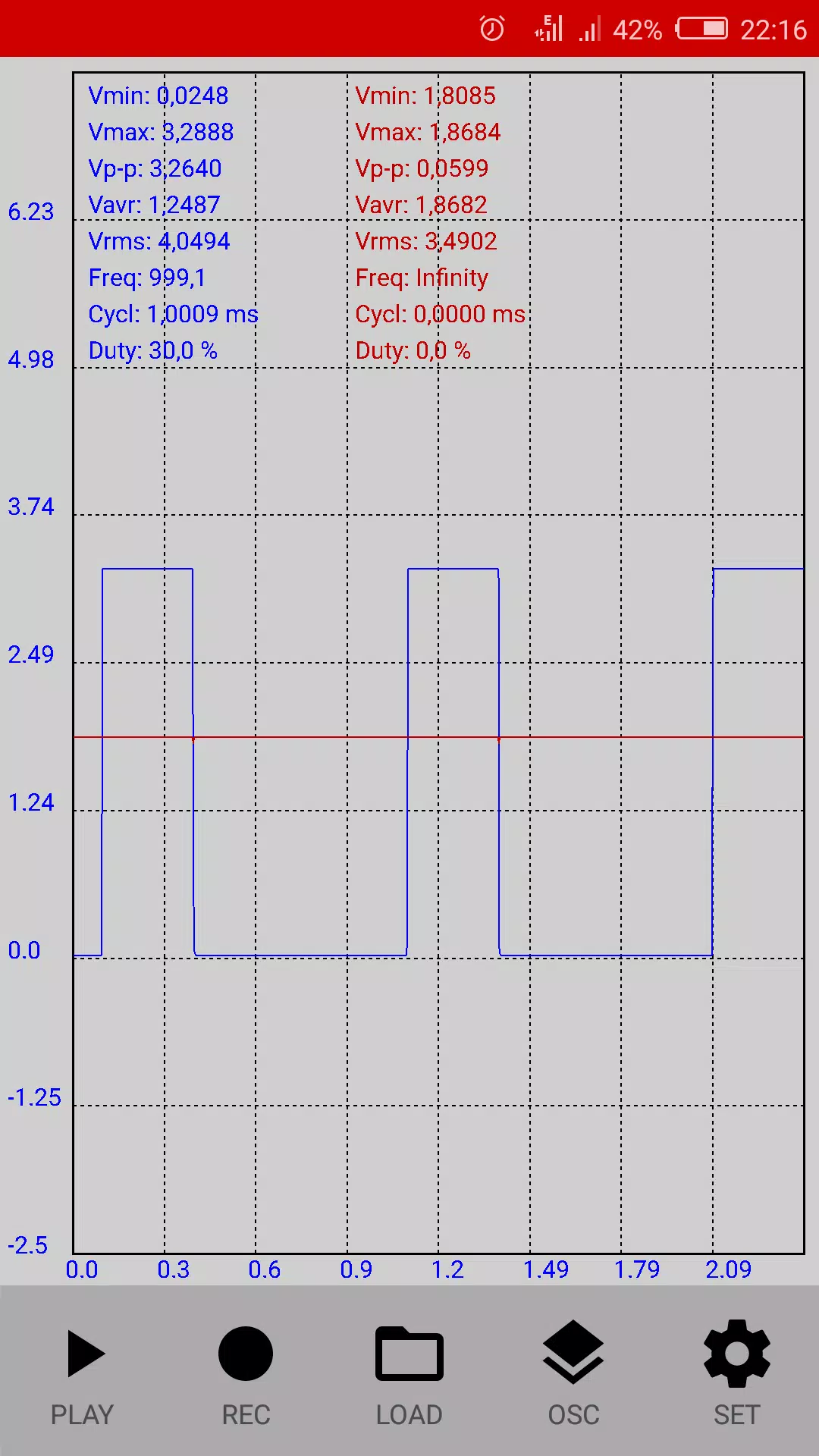

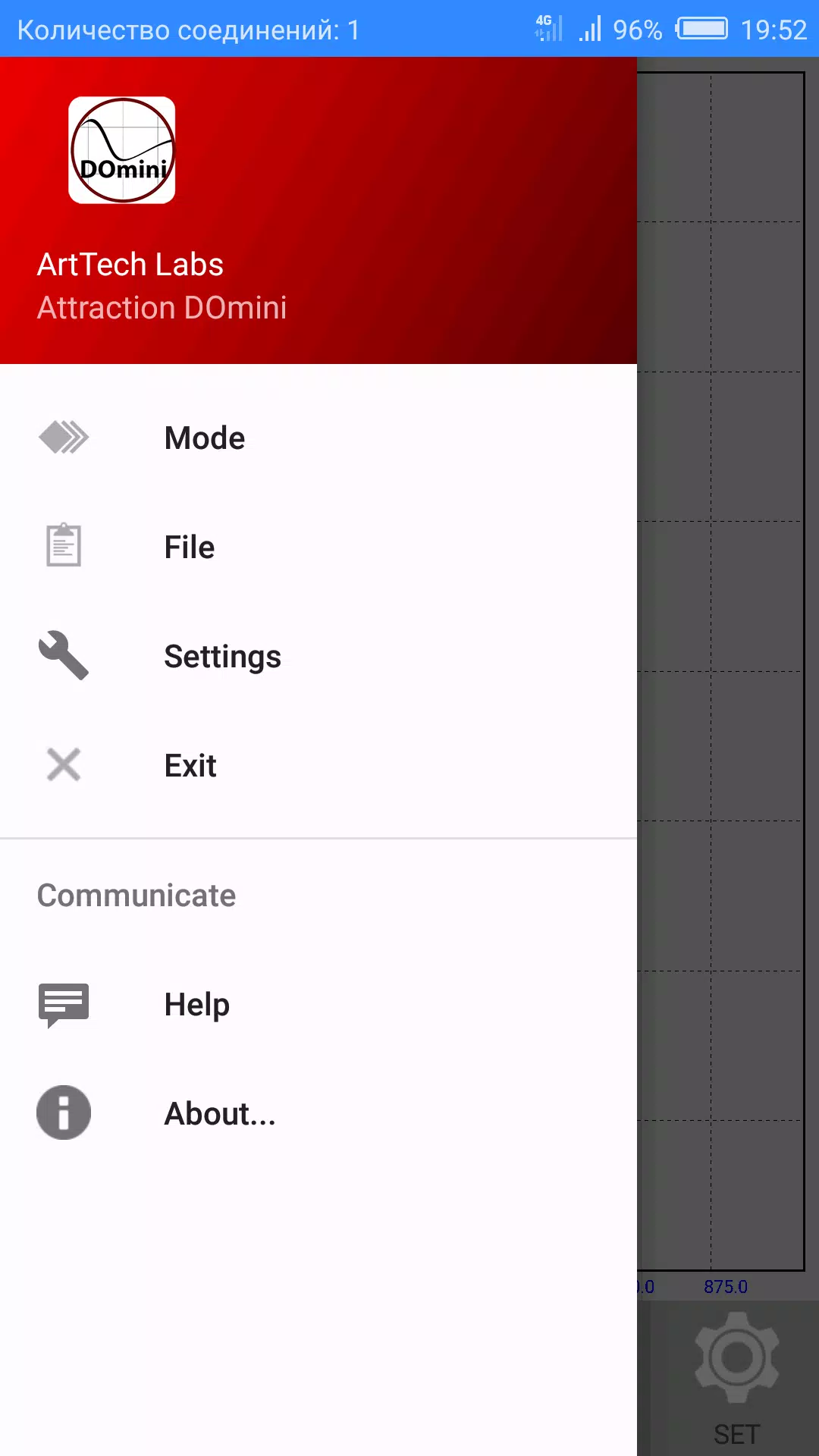

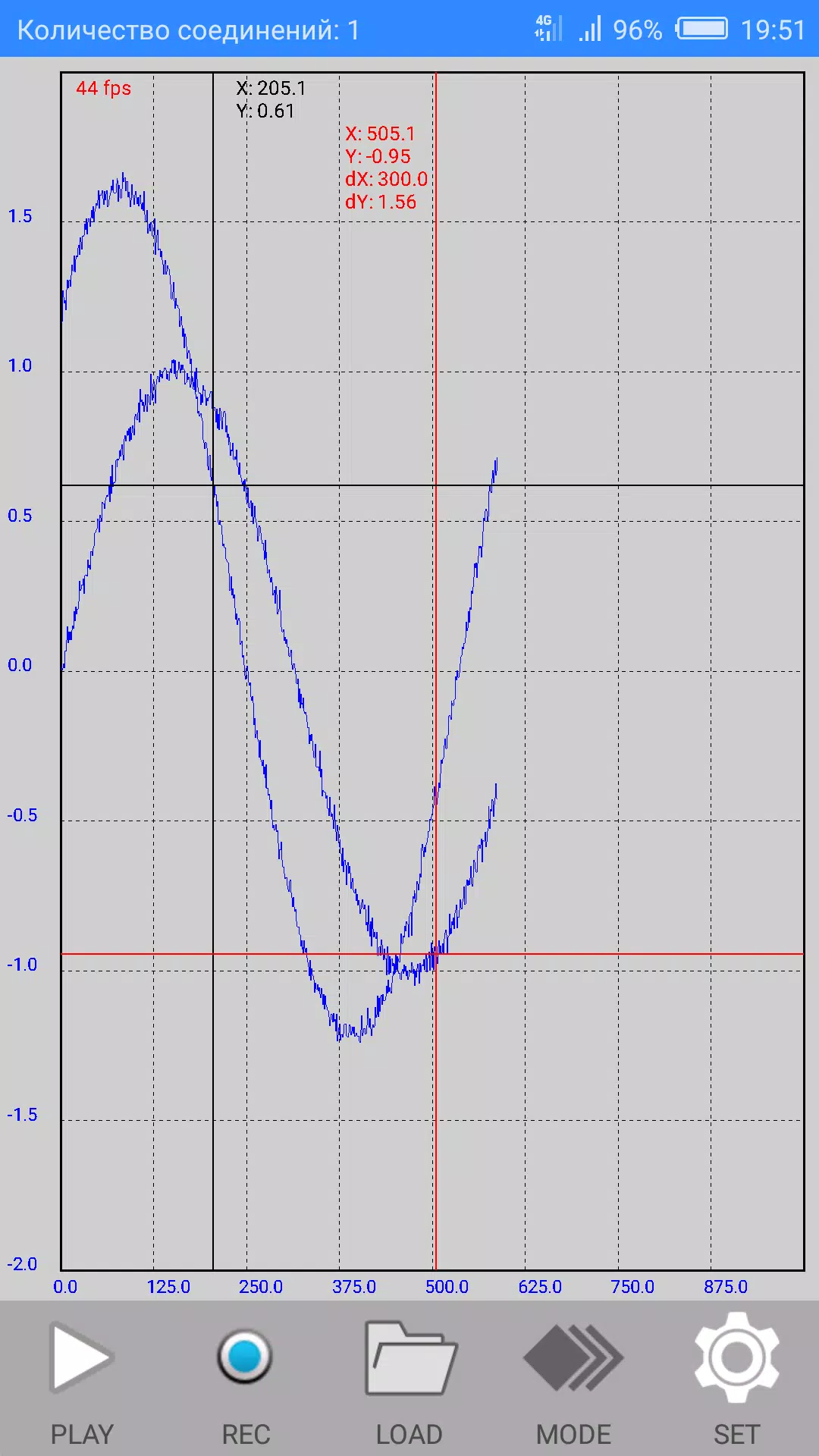

Screenshot
